PNG to SVG for Bambu Studio: Clean Multicolor Imports

To convert a PNG for Bambu Studio, first turn the flat image into an SVG, reduce it to the color regions you want to model, and inspect the paths before import. Bambu Studio can then turn those vector regions into a 3D model. Check the imported size, thickness, parts, and sliced preview before treating the model as finished.

The SVG is the handoff between pixel artwork and the model. A cleaner handoff gives you fewer stray pieces to delete and makes missing holes or merged colors easier to catch.

Short on time? Use this Bambu Studio checklist

1. Start with flat artwork that has clear edges and a limited palette.
2. Decide which color regions need to become separate model parts.
3. Convert the PNG to SVG with Inkscape or a dedicated vectorizer.
4. Check closed regions, holes, stray shapes, and excessive fragments.
5. Import the SVG into Bambu Studio and confirm its physical dimensions.
6. Set the model height and colors, then inspect the sliced preview.

Can Bambu Studio import a PNG or SVG?

Bambu Lab's official image-to-3D workflow uses a PNG or JPG as the source, traces it into SVG with Inkscape, and imports that SVG through File > Import. The tutorial then covers size, thickness, color, slicing, and preview.

For this route, think of the files this way:

• PNG: the original pixel image you want to reproduce.
• SVG: the editable 2D regions Bambu Studio imports and turns into model geometry.
• Sliced model: the result you verify for your printer after setting dimensions, thickness, materials, and other project-specific choices.

This distinction matters when someone says they want to import a PNG into Bambu Studio. The documented route converts the PNG first. Changing the extension does not create vector paths.

Choose the right PNG before converting

The best candidates look more like a sticker or badge than a photograph. They have a clear silhouette, intentional flat colors, and details large enough to survive at the intended model size.

PNG source	Good fit for this workflow?	Preparation
Flat logo or badge	Yes	Keep the intended color regions and remove background noise
Bold icon or silhouette	Yes	Preserve the outer boundary and any real holes
Simple line art	Sometimes	Give the lines enough width to form areas instead of bare centerlines
Photo or shaded portrait	Usually no	Stylize it into flat regions or use a depth-aware workflow
Gradient-heavy artwork	Only after simplification	Choose a small palette instead of tracing every shade
Tiny lettering or hairline detail	Risky	Enlarge, thicken, or redraw critical details

A multicolor image may contain anti-aliased edge pixels and compressed shades that look like extra colors to a tracer. Choose the few regions that should become distinct parts before conversion. If you want a three-color badge, a trace with dozens of near-duplicate colors is extra cleanup, not extra useful detail.

Two reliable routes from PNG to SVG

There is no need to hide the tradeoff between a vector editor and a dedicated converter. Both can produce a useful SVG when the source fits.

Route	Best when	Work you should expect
Inkscape Trace Bitmap	You want detailed tracing controls and manual editing in one desktop app	Tune the trace, separate or combine shapes, inspect nodes, and save as SVG
A dedicated vectorizer	You want a faster raster-to-vector starting point and a preview before download	Choose the useful color regions, inspect the SVG, and repair any destination-specific issue

Bambu Lab demonstrates the Inkscape route in its tutorial. It is a sound choice when you already know the editor or need to redraw precise lettering. A dedicated vectorizer can shorten the conversion stage, especially for a clean logo or icon, but it does not remove the need to inspect what Bambu Studio imports.

For a broader explanation of the file pipeline across CAD and slicer tools, see the image-to-SVG workflow for 3D printing.

Convert the PNG and prepare the color parts

1. Clean the raster source

Use the largest sharp copy you have. Crop away unrelated objects and remove an unwanted background. A solid background can turn into a large rectangular region, while dust and compression marks can become tiny vector fragments.

Keep the background when it is meant to be the base plate. Prepare the source so its visible regions match the parts you intend to model.

2. Set a deliberate color count

Identify the base, raised artwork, and accents before tracing. Combine shades that should use the same material or color. Keep separate regions only when they have a useful modeling role.

Color alone does not guarantee that Bambu Studio will produce the grouping you expect. The SVG also needs distinct, usable geometry. Two differently colored areas that were flattened into one path may need separation in a vector editor.

3. Create the SVG

Trace the image in Inkscape, or convert the PNG to SVG for a 3D-printing workflow. Download the SVG and keep the original PNG nearby for comparison.

At this stage, look at the whole silhouette before zooming into nodes. Confirm that no letter disappeared, no counter filled in, and no background rectangle joined the artwork.

Before import

Audit the SVG before Bambu Studio

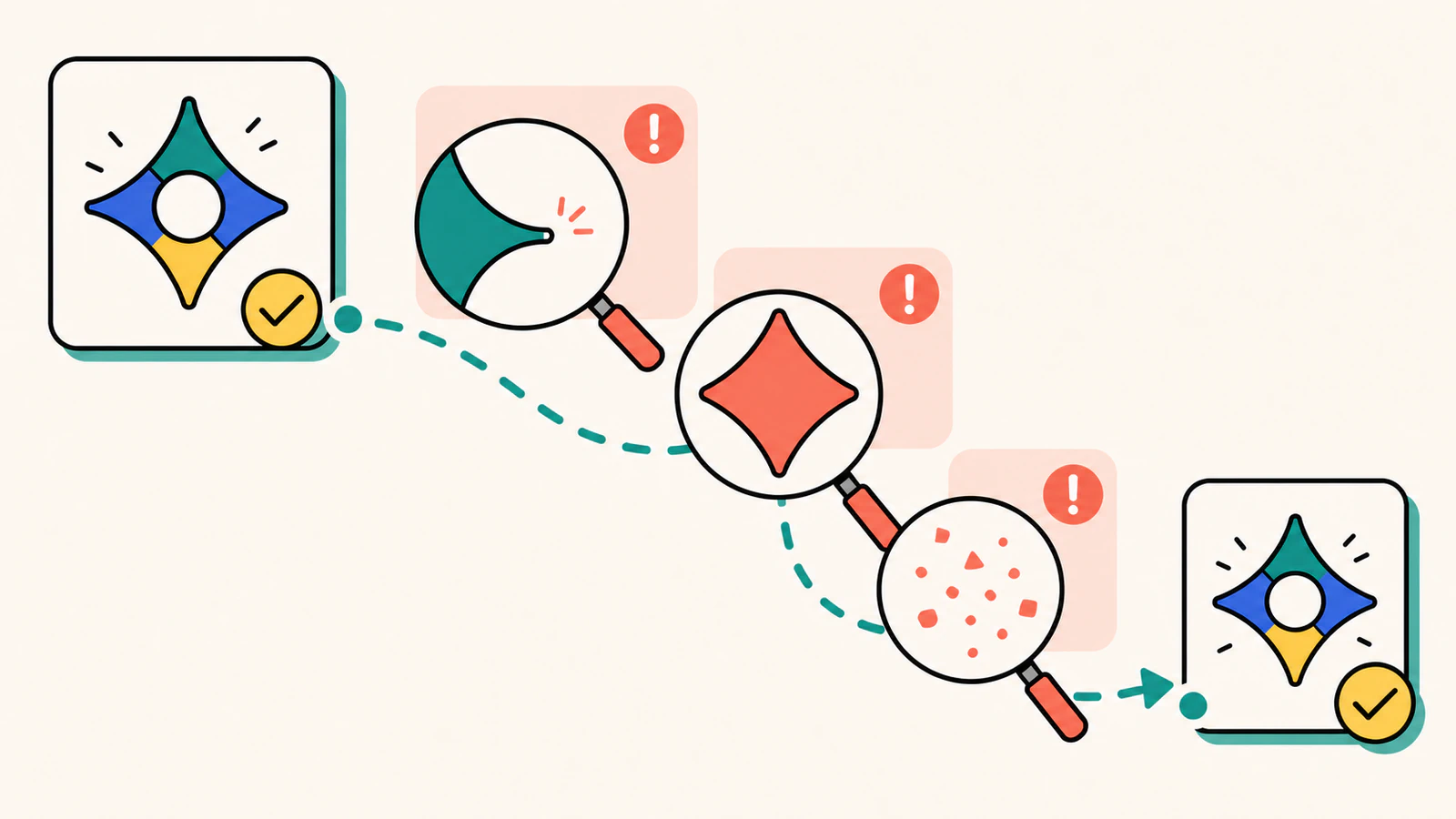

An SVG can look correct in a browser and still contain geometry that becomes awkward after import. Check these five items first.

Closed regions

Each area that should become a face needs a usable boundary. In SVG, a path can contain open or closed subpaths; the SVG 2 path specification defines how those segments and closure commands work. If curves appear but the region does not become a face, inspect open endpoints, overlaps, and line-only artwork with the SVG extrusion checklist.

Do not close every line blindly. Engraving marks and centerlines may be intentionally open. Close only boundaries intended to enclose an area.

Holes and counters

The center of a ring or the counter inside a letter must remain empty. SVG fill behavior can depend on path direction and the fill-rule property, as defined in the SVG 2 painting specification. If an intended hole becomes solid, inspect the compound path or subtract the inner profile after import. Recoloring the middle white does not necessarily make it a hole.

The filled-hole repair guide covers compound paths and fill rules in more depth.

Stray rectangles and fragments

Hide the fill or switch to an outline view in a vector editor. Delete a background rectangle only after confirming it is not the intended base. Remove tiny islands that came from dust, shadows, or color noise. These fragments may become separate model pieces or expand the imported bounds.

Node count

Simple curves should not need dense chains of points. Excess nodes can make editing and downstream geometry solving slower, but aggressive simplification can flatten corners or close small gaps. Compare every simplified result with the source. The too-many-nodes guide shows what to diagnose before reducing points.

Physical size

Know one target dimension before import, such as the badge width. Do not assume the pixel dimensions of the PNG will become the correct millimeters. If the SVG arrives at an unexpected scale, use the wrong-size SVG checklist and correct the document or import dimensions deliberately.

Import and verify in Bambu Studio

The official Bambu Lab sequence is a useful final checklist:

1. Open File > Import and select the SVG.
2. Confirm the model's width and height against your target dimensions.
3. Set the thickness or height needed for the project.
4. Check that the expected regions became usable parts.
5. Assign colors or materials to the intended parts.
6. Slice the model and inspect the preview before printing.

Zoom into small counters, corners, and gaps after import. A clean 2D preview is helpful, but the Bambu Studio model and sliced layers are the checks that matter for this destination.

This guide intentionally stops short of universal nozzle, layer-height, filament, or purge settings. Those choices depend on the printer, material, model geometry, desired surface, and current Bambu Studio setup.

What this looks like with PerfectVector

PerfectVector handles the raster-to-vector part of the workflow. Upload a suitable flat PNG, review the reconstructed vector regions, adjust the useful colors, and download the SVG. Then run the same geometry and Bambu Studio checks described above.

That division of responsibility is important. PerfectVector creates an editable 2D vector file. Bambu Studio imports that file, turns its regions into model geometry, and prepares the print. No vectorizer can guarantee that every source image will produce the exact parts a destination app expects without inspection.

Try the PNG-to-SVG workflow for 3D printing when you have a flat logo, icon, sign face, or badge that needs a clean starting point. Use a vector editor instead when you need exact engineering dimensions, custom path construction, or careful type redrawing.

When another workflow is better

• Photographs and shaded portraits: A flat trace discards continuous tone. A lithophane or another depth-aware method may better match the intended result.
• Sculptural objects: A single SVG profile cannot describe a figurine or an object with depth on every side. Use 3D modeling, scanning, or an image-to-3D workflow.
• Exact brand lettering: Automatic tracing may preserve the visible outline but not the original font construction. Use the source vector or redraw it when accuracy matters.
• Single-line engraving: A centerline workflow may be better than turning every stroke into a filled shape.
• Very small printable features: The SVG may retain them even when the chosen physical size, nozzle, or material cannot. Evaluate those details in the actual model and sliced preview.

Final pre-slice checklist

• The source has intentional flat regions rather than accidental shades.
• Every part you want to model has a distinct usable shape.
• Intended faces have closed boundaries.
• Counters and holes remain empty.
• No unwanted background rectangle or tiny fragment remains.
• The node count is reasonable for the artwork.
• The imported dimensions match the target size.
• Thickness and color assignments match the intended model.
• The sliced preview preserves small gaps and separate regions.

FAQ

Does Bambu Studio accept SVG files? Yes. Bambu Lab's official image-to-3D tutorial imports an SVG through File > Import, then adjusts the resulting model's size, thickness, and colors before slicing. Check the current documentation for the Bambu Studio version you use.

Can I import a PNG directly into Bambu Studio? For the workflow covered here, use the PNG as the source and SVG as the import file. Bambu Lab's documented image-to-3D tutorial converts the raster image to SVG in Inkscape before importing it. This preserves editable vector boundaries for the modeling step.

Why does my multicolor SVG import as one color? The file may contain one merged shape, or its visible colors may not correspond to separate usable regions. Inspect the SVG in a vector editor, separate the parts you intend to model, and then verify the imported model before assigning materials or colors.

Why did a hole fill in after SVG import? The inner boundary may not be represented as a usable compound hole, or the import may not preserve the fill relationship you expected. Confirm that both boundaries exist, repair the compound path if needed, or subtract the inner profile in the modeling stage.

Should I use SVG, STL, or 3MF for a Bambu Studio project? Use SVG as a 2D source when you still need Bambu Studio to create height from flat profiles. STL and 3MF describe modeled 3D geometry later in the workflow. The right format depends on whether you are bringing in editable flat regions or an already modeled object.

Sources

1. Bambu Lab Wiki — Converting an Image to a 3D Model Using Bambu Studio — Documents the raster-to-SVG preparation, SVG import, model adjustment, color, slicing, and preview sequence.
2. W3C — SVG 2 Paths — Defines SVG path data, subpaths, and path closure used in the geometry audit.
3. W3C — SVG 2 Painting: Fill Rules — Defines the fill-rule behavior relevant to counters and compound holes.
4. PerfectVector — SVG for 3D Printing — Confirms the current PerfectVector route used for the raster-to-vector stage.

---

Have a flat design ready for Bambu Studio? Convert the PNG to SVG, check the color regions and holes, then verify the imported model and sliced preview before printing.
