How to Evaluate Vector Trace Quality: A Scorecard

A good vector trace preserves the intended shapes, stays practical to edit, and works in the application or process it was made for. A smooth preview is not enough. Grade the file across six checks: edge fidelity, negative space, color mapping, node efficiency, editability, and destination testing. Give each check 0, 1, or 2 points, then apply the stop rule for serious defects.

This scorecard is an original evaluation method, not a benchmark of a particular vectorizer. Use it on any automatic trace, including two outputs from different tools, as long as both start from the same source and are judged for the same destination.

The 12-point trace-quality score

• 2 points: ready for the intended job
• 1 point: usable after specific cleanup
• 0 points: incorrect, broken, or unsuitable for the destination

A total of 10–12 is a strong starting file. A 7–9 needs planned cleanup. A score of 6 or below usually calls for a new trace or redraw. Any zero in edge fidelity, negative space, or destination testing overrides the total.

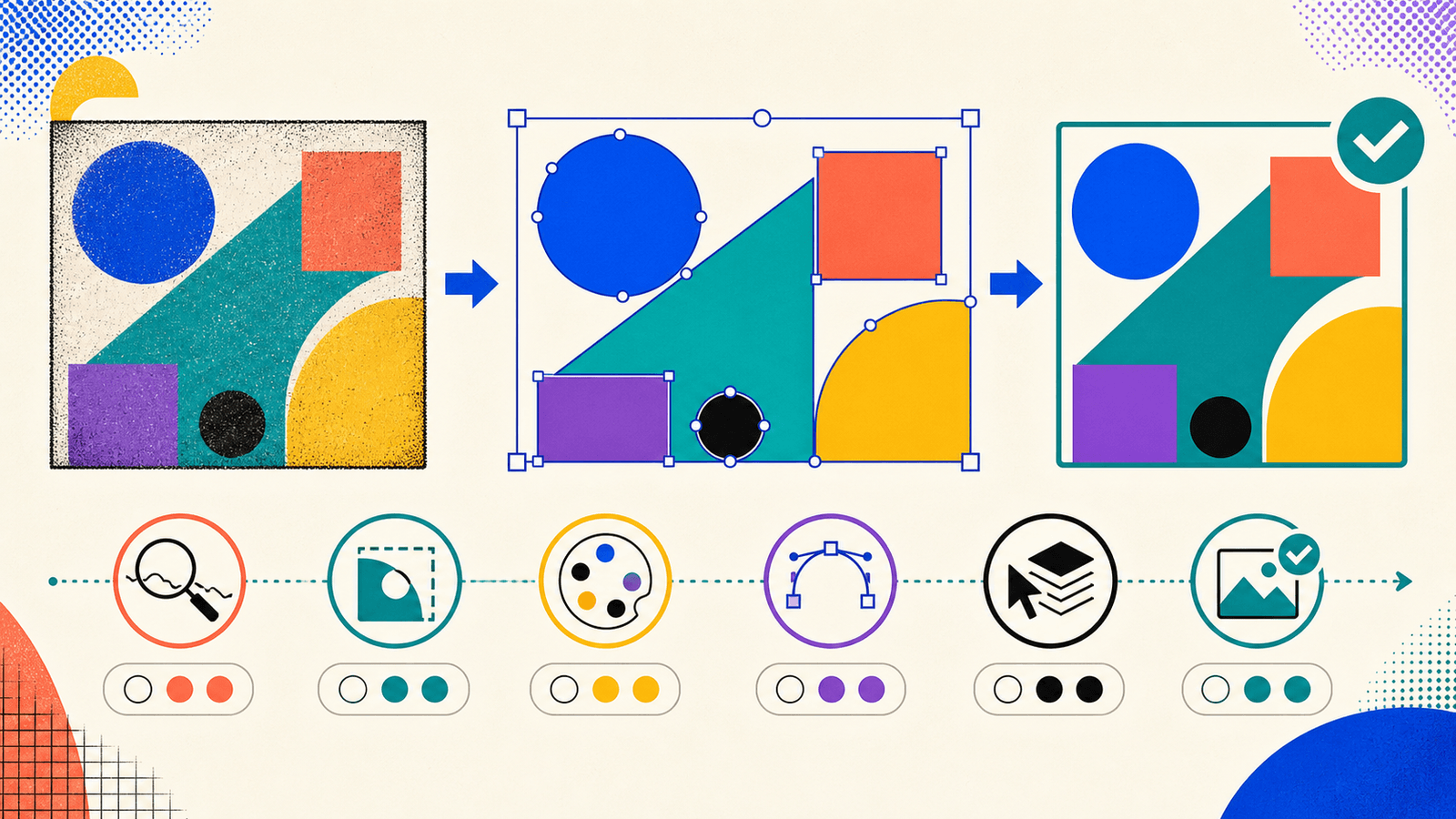

The six-part vector trace quality scorecard

Check	0 points	1 point	2 points
Edge fidelity	The silhouette or important corners are wrong	Small local deviations need cleanup	The intended silhouette and corners hold at the working size
Negative space	A required hole, counter, or gap is closed or missing	Minor spacing errors need repair	Intentional holes and gaps are intact
Color mapping	Colors, transparency, or region boundaries are wrong	The palette is close but fragmented or inconsistent	Intended regions are separated into useful colors and transparency
Node efficiency	Simple shapes contain dense, wobbly point chains	Most paths are workable, with a few crowded areas	Points are placed economically without changing the shape
Editability	Intended parts cannot be selected or changed cleanly	The file is editable after regrouping or local cleanup	Intended shapes can be selected, moved, and recolored directly
Destination test	The file fails its real use	It works after a known repair or workaround	It imports and behaves as required in the destination

Six checks, scored from 0 to 2

The total makes two traces easier to discuss, but the notes beside each score matter more than the number. Write the defect down in plain language, such as "inner counter closes at small size" or "curve has a dense chain of points near the shoulder." That gives the next editor something they can fix.

Set up a fair source-to-trace review

Decide what the vector needs to do before opening the file. An SVG for a responsive interface, a logo master, and artwork for a cutter can fail in different ways. The destination defines which details are essential.

Then use this workflow:

1. Keep the untouched raster source beside the traced SVG.
2. Place the trace over the source and align their bounds. Lower the trace opacity or toggle its visibility so silhouette drift is easy to see.
3. Inspect once at the intended output size, then zoom in enough to see corners, gaps, overlaps, and curve behavior.
4. Switch to outline or node view. Record crowded paths, open contours, and fragments that the filled preview hides.
5. Grade all six checks and add one sentence of evidence for every score below 2.
6. Open the SVG in its real destination and perform the next action, such as recoloring a shape, resizing an icon, importing a logo, or previewing a cut.

When comparing tools, keep the source, destination, and acceptable detail level fixed. A highly detailed trace will often need more geometry than a simplified icon. Comparing node counts without holding fidelity constant rewards the wrong result.

1. Edge fidelity: does the trace preserve the intended contour?

Start with the outer silhouette, then inspect corners and long curves. A trace can look polished at thumbnail size while changing the width of a letter, flattening a rounded shoulder, or turning a deliberate corner into a wobble.

Score 2 when the contour matches the intended design at its working size and close inspection reveals no meaningful drift. Score 1 for a few local corrections. Score 0 when the error changes the identity, balance, or fit of the artwork.

Do not demand that the vector follow every source pixel. Raster edges can contain softness and small pixel variations that are not part of the intended geometry. Adobe's Image Trace documentation exposes this trade-off directly: its Paths control changes how tightly a trace follows the pixel shape, while Corners and Noise alter how bends and small regions are interpreted. See Adobe's current Image Trace options.

2. Negative space: are holes and gaps still open?

Inspect letter counters, enclosed holes, the space between nearby shapes, and any narrow break that separates two parts. These areas often carry as much identity as the filled shapes. The SVG specification allows compound paths with multiple subpaths, including holes inside objects, so a filled preview can hide whether that structure is sensible until you select it. See the W3C definition of SVG paths.

Score 2 when every intentional opening survives. Score 1 when the openings exist but one or two need reshaping. Score 0 when an opening closes, disappears, or merges two parts that must remain separate.

For lettering and logos, compare the spaces as shapes of their own. If a counter is too small or a gap changes width abruptly, the trace may feel wrong even when the outer silhouette is close.

3. Color mapping: did the trace create useful regions?

Compare intentional color regions, not every anti-aliased edge pixel. A useful trace keeps distinct design colors separate, preserves transparency where it matters, and avoids scattering near-duplicate fills across what should be one editable area.

Score 2 when the regions match the design and can be selected by their intended role. Score 1 when the palette is close but needs merges or boundary cleanup. Score 0 when a required color is missing, transparency becomes a filled background, or important regions are combined incorrectly.

Color count alone is not a grade. More colors may preserve a shaded illustration, while fewer colors may suit a flat mark. Adobe's panel makes the same underlying trade-off visible by changing the number and size of color regions, and it reports Paths, Anchors, and Colors separately. That separation is a useful model for the audit: fidelity and complexity are related, but they are not the same score.

4. Node efficiency: is the path simpler than the pixel noise?

Turn on the nodes and look for long curves defined by a dense chain of tiny segments. A few well-placed Bézier points can describe a smooth curve; the SVG path specification defines straight segments, curves, and arcs as different path commands. A trace that follows every small raster fluctuation can remain visually close while becoming slow and awkward to edit.

There is no universal good node count. Judge efficiency relative to the shape and required fidelity:

• A straight edge should not need a row of nearly collinear points.
• A smooth arc should not alternate through tiny bends.
• A deliberate corner should keep a point that preserves the corner.
• Two traces should be compared only when they preserve the same useful detail.

Score 2 when the geometry is economical and stable. Score 1 when only a few areas are crowded. Score 0 when dense points are widespread or the path visibly wiggles. Illustrator's Auto-Simplify can remove unnecessary points and smooth paths, but simplification still needs a visual recheck so it does not erase an intentional feature. Adobe documents that cleanup workflow here.

If this is the main failure, use the deeper guide to diagnose an SVG with too many nodes.

5. Editability: can you change the parts you expect?

Try a small edit instead of judging the Layers panel from a distance. Select one intended shape, move it, recolor it, and undo. Check whether a background is separate, whether one color has been fragmented into many objects, and whether a simple component is trapped inside an unnecessary compound structure.

Score 2 when the intended parts are directly selectable and the edit behaves predictably. Score 1 when regrouping or a small amount of path cleanup makes the file workable. Score 0 when the file is effectively a flat picture, a welded tangle, or a structure that cannot support the required edit.

For a recovered logo, also confirm that the visible artwork is made from paths rather than a raster image embedded in an SVG container. The logo vectorization checklist covers that specific trap.

6. Destination testing: does it survive the next step?

The last test happens outside the tracing preview. Open the file where it will be used and perform one representative action. Resize it in the target interface, change a production color, send it through the expected import, or inspect the toolpath preview.

Score 2 when the file behaves as required. Score 1 when one documented repair makes it usable. Score 0 when the SVG cannot complete its intended job.

This score overrides a polished appearance. A trace with beautiful curves still fails if an essential hole closes during import or the required parts cannot be edited. If you are comparing tracing methods, the Image Trace versus AI vectorizer guide explains why the complete cleanup workflow matters more than the convert button.

How to read the total without hiding a bad defect

Use the ranges as a triage tool:

• 10–12: a strong starting file. Record any remaining 1-point cleanup before delivery.
• 7–9: usable only if the listed cleanup fits the project budget and deadline.
• 0–6: rerun the trace with a better source or method, or redraw the important geometry.

Apply a stop rule after adding the points. A zero in edge fidelity, negative space, or destination testing means the file is not ready, even if the total reaches 10. Brand-critical artwork can justify a stricter rule, such as requiring 2 points for every geometry check.

The thresholds are part of this scorecard method, not an industry standard. Teams can change them, but should write the rule down before comparing outputs.

What this looks like with PerfectVector

PerfectVector gives you one trace candidate to evaluate with the same six checks. Run your source through the image-to-vector workflow, open the SVG in the editor or production app you already use, and grade it beside the original. If you are comparing it with another method, hide the tool name while scoring and reveal it only after both reviews are complete.

We are deliberately not assigning PerfectVector a score in advance. The useful outcome is a result you can verify on your own artwork: inspect the silhouette, holes, color regions, nodes, edits, and destination behavior before choosing the file you will keep.

For a wider tool-selection process, the current AI vectorizer comparison helps you choose candidates, while this scorecard gives each output the same review.

When a new trace will not solve the problem

Rerunning a converter is unlikely to recover information the source does not contain. Redraw or return to an earlier source when:

• a tiny or blurred logo no longer shows its intended corners;
• exact brand geometry matters more than an approximate trace;
• live text, original font information, or named layers must remain editable;
• a photograph or gradient-heavy image should retain continuous tone;
• a technical drawing needs verified dimensions rather than a visual outline.

In those cases, the honest score may be low because vector tracing is the wrong reconstruction method. The image vectorization primer explains when an image is a suitable tracing candidate and when keeping it raster is the better decision.

A compact review record

Save this beside the SVG so another editor can reproduce the decision:

Field	Record
Source	Filename and version
Intended destination	App, machine, or delivery requirement
Trace method	Tool and settings or preset
Six scores	Edge / space / color / nodes / editability / destination
Stop rule	Pass or fail, with the defect if failed
Cleanup	Specific edits still required
Final decision	Keep, revise, rerun, or redraw

FAQ

What makes a vector trace good? A good trace preserves the intended silhouette, negative spaces, and color regions with paths that are practical to edit. It must also work in the application or production process it was created for.

How many nodes are too many in a vector trace? There is no universal limit. Use the fewest nodes that preserve the required silhouette, corners, and detail. Compare traces of the same source at the same fidelity, and investigate simple curves with dense point chains.

Should a vector trace match every source pixel? Usually no. A trace should preserve the intended geometry rather than reproduce every soft edge or small pixel variation. Pixel-level matching is useful only when that texture is part of the design brief.

Can I judge trace quality from a PNG preview? A PNG preview can reveal obvious silhouette or color errors, but it cannot prove node efficiency, editability, or SVG structure. Open the vector file, inspect its paths, and test it in the intended destination.

What score should I accept? Under this method, 10–12 is a strong starting file, 7–9 needs planned cleanup, and 6 or below usually calls for a rerun or redraw. Any zero in edge fidelity, negative space, or destination testing fails the stop rule regardless of the total.

Sources

1. Adobe — Image Trace panel options — Current controls for source comparison, paths, corners, noise, colors, anchors, transparency, and expansion.
2. W3C — SVG 2 Paths — The standard definition of path geometry, segments, curves, closed shapes, and compound subpaths.
3. Adobe — Simplify paths automatically — Current workflow for removing unnecessary anchor points and smoothing paths.

---
