RDWorks Image Trace: Import a Vector or Trace Bitmap?
Compare RDWorks bitmap tracing with a version-compatible vector handoff, then check scale, layers, nodes, doubled lines, and laser operations.
On this page
RDWorks can work with raster artwork and vector paths, but those inputs serve different jobs and the exact import list varies by release or distribution. A bitmap is useful for engraving or as the source for a quick outline. A compatible vector file supplies paths that can be assigned to line operations. If you need a clean cut contour, decide whether the native trace is already good enough or whether the image should be vectorized before it reaches RDWorks.
The short answer
- Engraving a photo or tonal image: keep it raster and tune the engraving workflow.
- Cutting a simple black silhouette: try RDWorks' native outline trace first.
- Cutting a color logo or noisy scan: create a clean vector master, then use a format your installed RDWorks build accepts.
- Cutting single drawn strokes: ordinary outline tracing produces two edges. Use a centerline method when one path per stroke is required.
Bitmap and vector are not interchangeable
A bitmap tells the laser software where pixels are light or dark. Vector artwork gives it explicit curves and boundaries. Thunder Laser's bitmap-versus-vector overview makes the practical distinction: raster data suits image engraving, while vector paths are the natural input for line-based cutting and scoring.
That does not mean every bitmap must become an SVG. Converting a photograph into thousands of little shapes usually makes the job worse. Vectorize only when the intended result is a boundary, silhouette, logo, stencil, or other shape-based design.

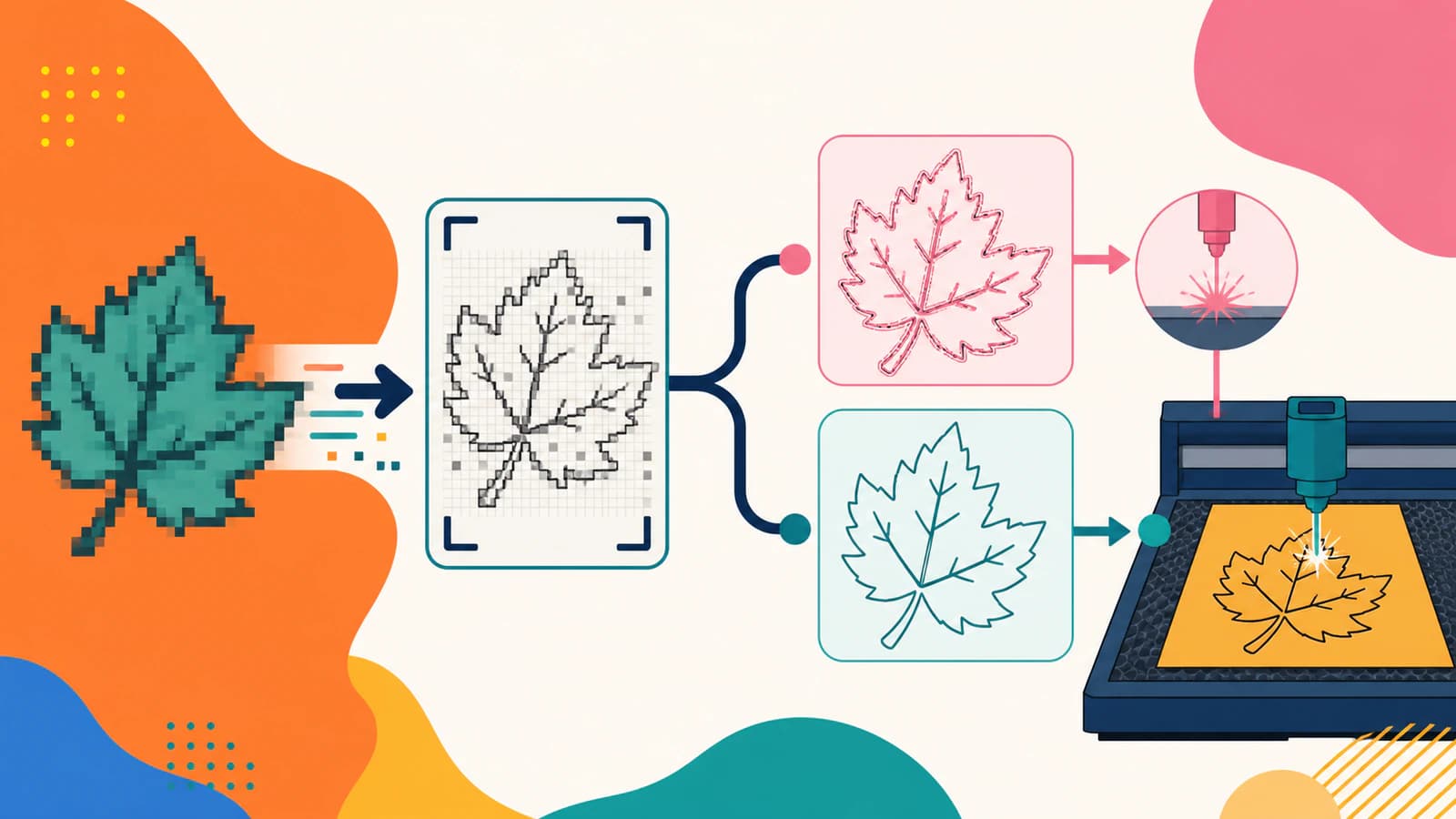

Route 1: trace the bitmap in RDWorks
Current RDWorks and LaserWorks tutorials commonly demonstrate selecting a bitmap and using the bitmap outline or Get Outline control to create vector contours. Labels and locations can vary across builds, so follow the equivalent outline command in your installed version.
This route is efficient when the source already has:
- one clear subject;
- strong contrast against the background;
- a simple outer contour;
- enough resolution to avoid stair-stepped edges.
After tracing, hide or move the original bitmap and inspect the new outline by itself. If the contour is closed, smooth, and appropriately simple, keep it. A native trace that passes inspection is not inferior merely because it took fewer steps.
Route 2: vectorize before import
Use a vector-first workflow when the native result breaks small counters, follows compression noise, mixes several colors into one contour, or creates too many nodes.
For suitable flat artwork, make a laser-oriented SVG with PerfectVector. Inspect the preview, reduce stray color regions, and download the vector. Treat that SVG as a reviewable master, not as proof that every RDWorks installation can import it.
Check the File > Import filter or help for your installed build before choosing the handoff. Ruida's RDWorks software manual lists DXF, AI, PLT, DST, and DSB as vector formats, without listing SVG. A newer OMTech support guide includes SVG in its RDWorks guidance. That difference is why a universal “import SVG” instruction is unsafe.
If your build accepts SVG and preserves the artwork correctly, import the inspected SVG into a fresh document. Otherwise, use a format that your build explicitly lists, such as DXF, AI, or PLT. For a DXF route, you can create a Cutting & CAM R13 DXF from the source image. Whichever format you use, compare it with the native trace without mixing in old layers or settings.

Run the five checks that matter
1. Scale
Measure the imported artwork before assigning operations. A file can look correct and still arrive at the wrong physical size because of unit or document-scale differences.
2. Closed contours
Zoom into corners, joins, and small internal holes. A tiny gap may prevent a filled preview or leave a cut incomplete. Self-intersections can create equally confusing results.
3. Doubled lines
A thick stroke traced as a filled shape has an inside and an outside boundary. If both boundaries are set to a line operation, the laser follows both. This is correct for a filled silhouette, but wrong when the original was meant to be one centerline.
4. Node density
A smooth curve should not need a forest of points. Excess nodes slow editing and may create visibly uneven motion. Simplify within a tolerance that preserves the design, or redraw basic circles and lines.
5. Layer operations
Keep cut, score, and engrave geometry on deliberate layers. Confirm the operation and order for every color before sending the job. The Open Works RDWorks guide is a useful reminder that file preparation and machine settings are separate responsibilities.
When vectorization is the wrong fix
Do not vectorize a photograph simply because it will be processed by a laser. Prepare it as a raster engraving instead. Do not use a fill vectorizer for handwriting or technical line art when you need one pass along each stroke. And do not expect tracing to repair a tiny, blurred logo with missing detail; find a better source or redraw it.
The best workflow is the one that yields the simplest geometry for the intended operation, not the one that produces the most paths.
FAQ
Can RDWorks vectorize a bitmap? Yes. Common RDWorks and LaserWorks workflows include an outline or Get Outline command for selected bitmap artwork. It is most useful for simple, high-contrast shapes. Inspect the resulting contour before using it.
Which vector format should I import into RDWorks? Check the import list for your installed RDWorks build. If it accepts SVG and preserves the artwork correctly, SVG is a convenient vector handoff. Other builds document formats such as DXF, AI, or PLT instead. Whichever route you use, verify scale, curves, layers, and closed paths after import.
Why does my traced line cut twice? The trace likely converted the stroke into a thin filled shape, so the laser follows both boundary paths. Use centerline tracing for a single toolpath, or engrave the filled region if that is the intended result.
Why is my imported vector slow or jagged? It probably contains too many short segments or nodes. Simplify the source vector, remove tiny fragments, and replace simple geometric features with clean lines, arcs, or circles.
Sources
- Ruida — RDWorks Laser Engraving Cutting Software Manual — Manufacturer manual listing supported vector and bitmap formats for that software release.
- OMTech — File Types Supported by RDWorks, LightBurn, and EZCAD — Current vendor guidance that includes SVG for its RDWorks distribution.
- Open Works Wiki — RDWorks — Community workshop guidance for RDWorks file preparation, layers, and machine workflow.
- Thunder Laser — BMP vs Vector for Laser Engraving — Manufacturer explanation of raster engraving and vector line operations.
- PerfectVector — SVG for Laser Cutting — First-party description of the laser-oriented raster-to-SVG workflow and output boundaries.
- PerfectVector — Image to DXF Converter — First-party description of raster path reconstruction and Cutting & CAM R13 DXF export.
For a flat logo or silhouette that produces a messy native outline, create and inspect a cleaner vector master, move it through a format your RDWorks build supports, and verify scale, layers, and every cut path before running the laser.
