SVG in .NET MAUI: Keep SVG, Reference the PNG

To use SVG in .NET MAUI's bundled-image workflow, keep the SVG in your project and reference its generated PNG name from XAML or C#. MAUI processes the vector source during the build. An Image pointing at compass.png can therefore be correct even when the file you added is compass.svg. Microsoft's project-image guide documents this conversion.

That explains the filename, but it leaves a design question: what size should MAUI generate, and what should you inspect afterward? Follow one small compass emblem through the source, project metadata, and display declaration.

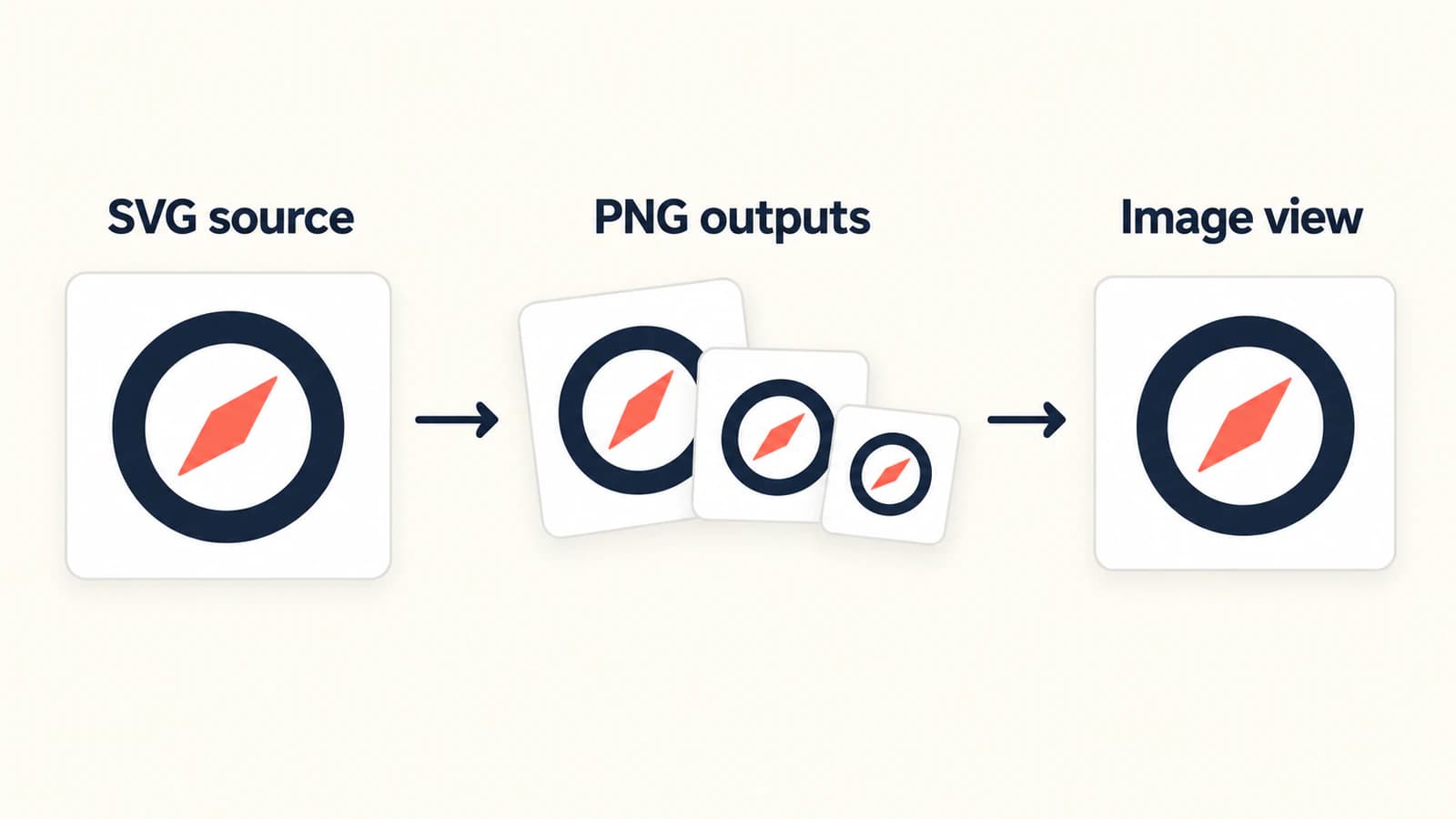

Follow the source through the build

The editable SVG and the packaged image have different jobs. Keep the source so you can adjust its shapes, whitespace, or colors later. Use the generated name in the view that displays it.

The Image control documentation describes the target-density images entering the app package and the operating system selecting an appropriate resolution. Keeping an SVG master does not mean this particular workflow delivers a live SVG document to the view.

Add a small SVG with clear bounds

Save this original example as Resources/Images/compass.svg:

<svg xmlns="http://www.w3.org/2000/svg" width="96" height="96" viewBox="0 0 96 96">
  <circle cx="48" cy="48" r="34" fill="none" stroke="#173e52" stroke-width="8"/>
  <path d="M58 28L52 52L28 58Z" fill="#ed765e"/>
</svg>

The ring leaves a transparent center, and the coral needle is a separate shape. Those details give you something specific to check after import. The declared dimensions and square viewBox also make the intended framing clear. See the SVG file guide for how vector geometry differs from a bitmap embedded inside an SVG wrapper.

In your project, confirm that the file has the MauiImage build action. Microsoft documents the Resources/Images folder as the normal location. Before adding XML, inspect the existing project items: your project may already include that folder with a wildcard. Project-image setup explains placement and build action.

Update an existing item once

If an existing MauiImage wildcard already includes the compass file, put this metadata update after that inclusion:

<ItemGroup>
  <MauiImage Update="Resources\Images\compass.svg" BaseSize="48,48" />
</ItemGroup>

Update changes metadata on an item that already exists. It does not add a missing file to the item list. If your project has no matching inclusion, add the file once with the MauiImage build action or an explicit Include instead. Microsoft's MSBuild Item reference distinguishes these operations.

This avoids a tempting repair: repeatedly adding Include entries while debugging a missing image. First establish whether the file is included, then change its metadata.

Reference the PNG and set the display area

Place this declaration inside an existing MAUI page or layout:

<Image Source="compass.png"
       WidthRequest="48"
       HeightRequest="48"
       Aspect="AspectFit"
       SemanticProperties.Description="Compass" />

The .png extension is intentional. The width and height request a square display area; AspectFit keeps the whole image visible inside it. If your illustration is rectangular, use a display area suited to it rather than stretching it to fill a square. Microsoft's Image scaling reference distinguishes fitting, cropping, and stretching.

The compass code is an original setup example, not a recorded device-rendering test. Build it in your own target project and inspect the resulting view. A correct filename alone cannot establish that your particular artwork renders as intended.

BaseSize and layout size solve different problems

BaseSize="48,48" supplies the baseline dimensions from which MAUI derives density-specific images. Without an explicit base size, MAUI uses the SVG's own dimensions. Microsoft documents both rules in Resize an image.

In this example, the source drawing uses a 96-by-96 coordinate space, while the requested baseline and view are 48 by 48. Those numbers are deliberate authoring choices, not measured output dimensions from a build. The ring should retain its proportions when scaled.

If you later use the same emblem in a much larger view, revisit the build size and inspect that use too. Changing WidthRequest does not edit the source artwork or its build metadata. Conversely, changing BaseSize does not remove empty margins inside the SVG. Tighten the drawing bounds in the source if the emblem itself looks too small within an otherwise correctly sized view.

Avoid using Resize="false" as a general sharpness fix. It disables vector-image resizing in this pipeline. Choose it only when that is the behavior you intend, following the documented resize option.

Check a missing or unexpected image in order

1. Confirm the filename and project item. Use a lowercase name such as compass.svg, and check for another image with the same name. Microsoft's naming rules require unique image names and Android-compatible characters.
2. Check the view's source. For the bundled SVG workflow, use compass.png in XAML or C#.
3. Compare the intended display area with the baseline size. A view-size change and a build-size change belong in different places.
4. Inspect the artwork itself. Is the ring center still open? Is the coral needle distinct? Is the emblem centered, or does invisible source whitespace push it aside?

Also inspect any image metadata that changes paint. The project-image guide documents TintColor and Color for tint and background color. Leave those unset for this two-color example unless you intend to change its appearance. Check the image against the actual page background, where a lost transparent opening is easier to spot.

When you need SVG behavior at runtime

Downloaded SVG content, interactive paths, or runtime edits need a separate implementation decision. The bundled-image instructions above do not establish support for those jobs.

For example, the Vapolia SVG sample project documents its own SvgImage and SvgImageSource controls and embedded-resource setup. That is a different loading contract. Evaluate the renderer's supported features and target platforms using your actual file before introducing it; swapping the filename extension in a normal Image declaration does not install a renderer.

The same artwork also needs different setup in Flutter's SVG image workflow, SwiftUI's asset catalog, and an Android VectorDrawable import. Reuse the source master, then follow each destination's rules.

Prepare a vector master when only a PNG remains

If the compass or logo exists only as a PNG, PerfectVector can help create editable SVG artwork before you add it to the MAUI project. Convert the PNG to SVG, then inspect the ring opening, small detached pieces, and spacing in an editor. Keep a clean master for later size or color changes.

Vectorization does not repair a MauiImage declaration or turn the bundled-image pipeline into a runtime SVG parser. If the source is already an editable SVG, work on the project configuration or drawing directly. Photos and textured artwork may be more useful as raster images; tracing them solely because the app accepts SVG sources adds a separate artwork decision.

FAQ

Why do I reference a PNG when I added an SVG? .NET MAUI converts bundled SVG image sources to PNG during the build. Keep the SVG in the project and reference the PNG filename from XAML or C#.

Does BaseSize set the size of the Image control? BaseSize sets the baseline dimensions used to derive density-specific build images. The view's layout and size requests control its display area.

Should I add another MauiImage Include to change BaseSize? Check whether the file is already included, including through a wildcard. Use Update to change metadata on an existing item; use Include only when the item needs to be added.

Will this load an SVG downloaded after the app was built? The bundled-image workflow does not cover downloading and parsing SVG at runtime. Choose and test a runtime rendering approach for that requirement.
